The Repeatable Instrument

A decimal grade is a measurement claim. Telling a 9.3 from a 9.7 only means something if the instrument, handed the same card twice, says the same thing twice. So we tested exactly that — with the thresholds published before the data existed, and every miss reported next to every pass. Five registry-locked cards. Five rescans each, deliberately shifted, slid, and rotated. One hundred twenty-three measurements. One accidental drop that became the most useful part of the study.

Every grading company publishes grades. None publish the precision of the instrument producing them. Yet precision decides what a decimal means: if a grader's reading of the same card wobbles by ±0.4 between scans, "9.3 versus 9.7" is a coin flip wearing a decimal point. If it wobbles by ±0.03, the distinction is a measurement. Industrial metrology settles this with a repeatability study — the same object, measured repeatedly under varied conditions — and the spread of the results, the standard deviation σ, is the instrument's noise floor. You cannot resolve differences smaller than your own noise. This study establishes that floor for MOSES, axis by axis.

MOSES grades each axis with independent machinery — measurements first, deductions from the measured math, never a model guessing a final number from a photo. Corners run layered analysis per corner: a trained detector, a reference-library match, an AI examiner for whitening and fray, a silhouette layer that traces the physical outline to the degree, a lift scan for bends and curls, and reconciliation rules. Engines were pinned for the study at MOSES 2.18.0 and Edge Engine 3.1.0; every read logged its layer outputs to an append-only record, which is what makes the analysis below auditable.

Five rescans per card, front and back, production scanner at production settings. Placement varied by protocol each round: centered, shifted inward, shifted outward, visibly rotated 5–10°, then free placement. All records registry-locked: the published grades cannot change during the study.

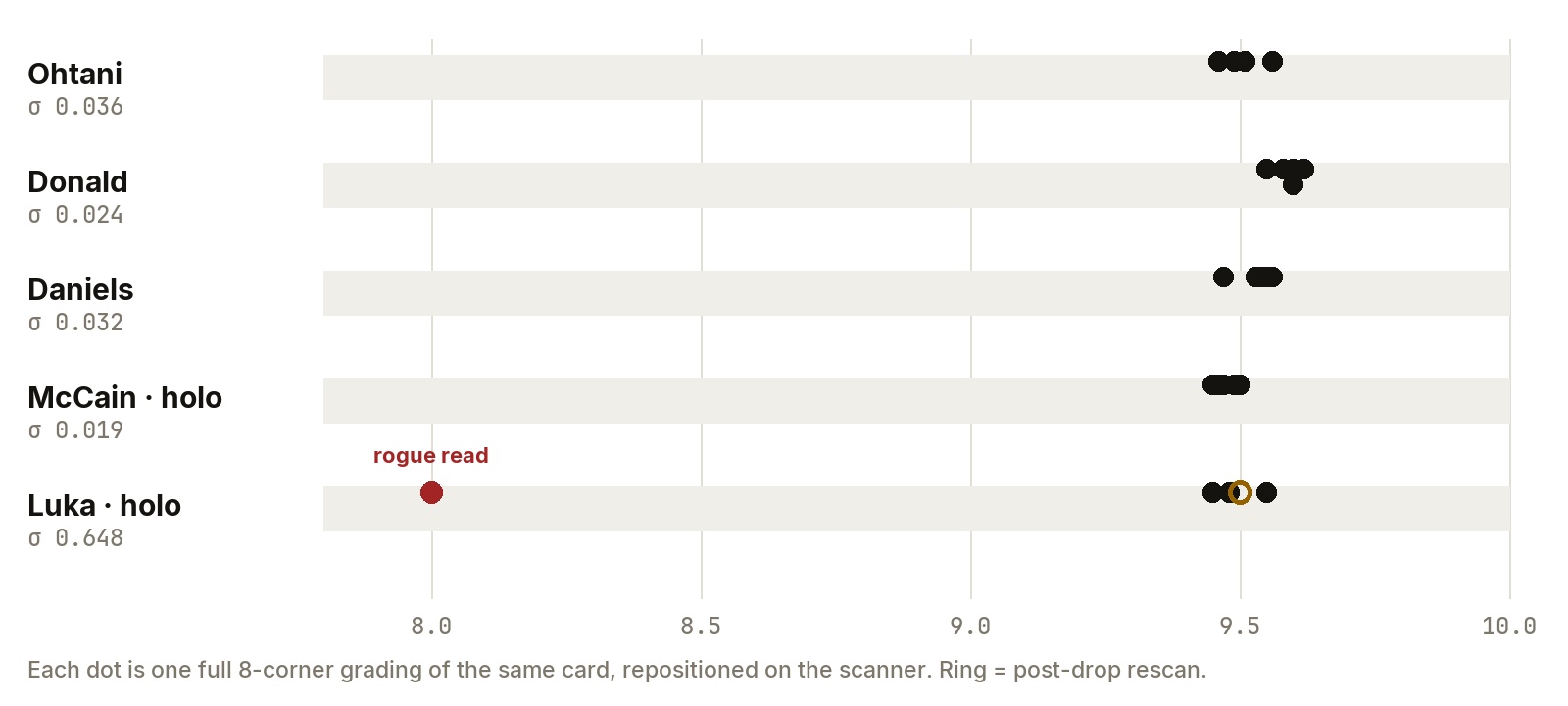

On matte and dark-art stock the corner engine behaved like a measurement instrument: σ between 0.019 and 0.036 across Ohtani, Donald, Daniels and McCain — a pass against the 0.10 bar with three times the margin. The set was not easy: it includes two 8s, corners sitting at the 9.3–9.4 borderline, and one of the two holographic cards (McCain) posted the tightest spread of the entire study at σ 0.019. Precision near ±0.03 means consecutive fractional grades, 0.1 apart, are separated by more than three noise-widths — and a 9.1-versus-9.8 comparison by more than twenty. For corner condition on standard stock, decimal distinction is not an aspiration. As of this study it is a measured property of the system.

Luka's third round produced the study's one large error, and the stored layer outputs let us dissect it exactly. The front bottom-left corner — a busy holographic region — read 8.5 on that round, against 9.1 / 9.5 / 9.5 on its other rounds. One read, a full point below its own neighborhood. The grading math then did what it is designed to do with genuine damage: a single corner below 9.0 floors the whole corner subgrade, so one 8.5 pulled a card averaging 9.5 down to a run-level 8.0.

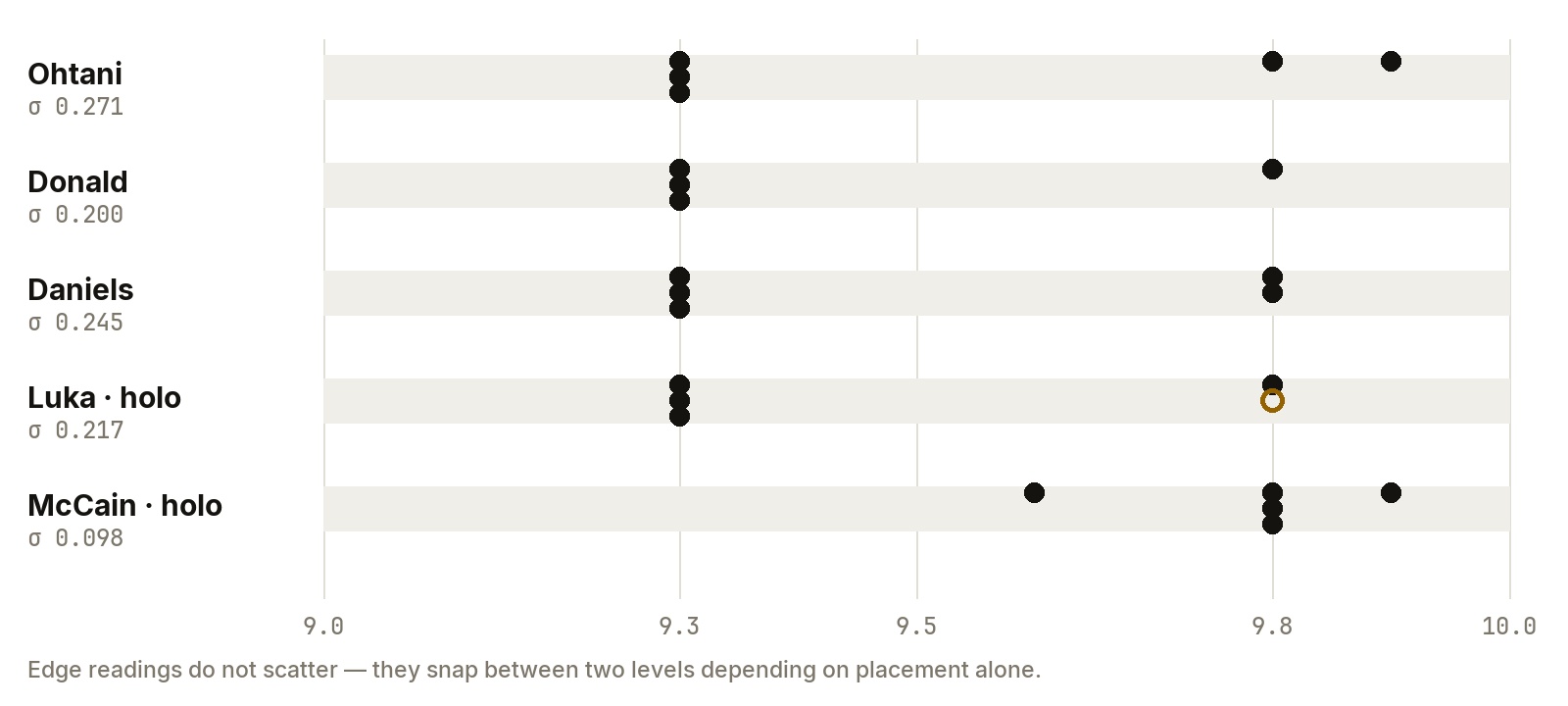

Edges failed both pre-registered bars (mean σ 0.206, worst 0.271) — and the shape of the failure is the finding. Edge readings are quantized: the engine produces discrete levels, and a placement change alone flips which level a borderline edge lands on. Every card exhibited the flip; none scattered randomly. A placement change can move an edge subgrade by 0.5. Because all 25 runs stored their per-edge layer outputs, the diagnosis set already exists, and this exact study re-runs afterward as the before-and-after proof. Until then, edge decimals should be read as band-resolution, not fractional-resolution.

Between rounds four and five, the study owner dropped the Luka card while rearranging the scanner bed, bending a corner. Instead of contaminating the study, this created something a repeatability protocol normally cannot have: a genuine physical change, timestamped mid-series, with the location deliberately withheld from the analysis. The protocol was amended on the record before analysis: Luka's stability statistics use rounds one through four; round five became a blind sensitivity probe.

Round five arrived doubly scrambled — the cards had been rearranged across bed quadrants, and the Luka card sat rotated 180°. Both were detected from image evidence alone, by matching every extracted card against its stored registry scan in both orientations. An initial corner-level call made before the rotation was discovered was withdrawn, on the record. Then the corrected numbers said this:

The owner then confirmed in hand: a bent top corner on the back — a bend with no crease. The engine had localized the change: the only corner to drop, independently on both faces of the card, in an otherwise stable session. But it priced the bend at roughly a tenth of a point, and the owner's grading standard, stated for the record during this study, is that a bent corner, creased or not, must never grade in the 9 range. Detection: yes. Severity: wrong by about two grade bands on this finish.

• MOSES 2.18.1 — lift telemetry. Every production corner read now permanently records whether the bend detector could measure, alongside the outline verdict. Within weeks, the blind-spot rate by finish is a measured number rather than an estimate, and the bend-detection fix will be proposed with data attached. Grading behavior: unchanged, verified by re-reading study crops against their baselines.
• The grade evidence chain. Every grade event on the registry now appends an immutable, hash-chained evidence record — each entry carries the fingerprint of the one before it, back to a genesis record, and the ledger is append-only at the database privilege layer. Editing grading history would visibly break every link that follows.
• The canary set. These five cards and their measured tolerances become a permanent regression gate: future engine versions must reproduce them within tolerance before activation. Drift stops being a risk managed by vigilance and becomes a property blocked by process.

• Five cards, one scanner. Sufficient for an instrument noise floor; not for population statistics. The main study (~25 cards, weighted toward holographic fronts and sub-9 corners) addresses breadth.
• Centering was uninformative here: the standalone centering engine scored every study card 10.0 on every run — a ceiling effect on near-centered cards, not evidence of precision. The ratio-based decimal centering path joins the next study.
• Surface was deferred pending a read-only wrapper for the etched-map engine.
• Repeatability is not accuracy. This study says the instrument returns the same number; the accuracy and discrimination phases — against expert-confirmed boundary cards — say whether it is the right number. Those are the next phases of the validation program.

‖ separates the pre-drop baseline from the post-drop round (documented material-change event). One corner run failed closed when the vision provider errored after retry and fallback — the engine refused to invent a grade; the run is recorded, not imputed. One round's card rearrangement and one 180° placement were detected and corrected from image evidence; the incident log lives in the registered protocol and results documents.

1. On standard card stock, MOSES's corner measurement repeats at σ 0.019–0.036 under deliberately adversarial placement — the precision a fractional-grade claim requires, demonstrated under pre-registered acceptance criteria.
2. The two failures are localized and instrumented: a 0.5% holographic rogue-read rate amplified by the sub-9.0 floor, and a placement-driven edge-level flip of 0.5 — each with a named engineering path and a built-in before-and-after test.
3. An accidental blind test exposed a structural blind spot — bends on dark printed corner stock — and the telemetry to size it shipped the same day.
4. The deeper claim is not that the engine is perfect. It is that the grading system measures itself, publishes the measurement, and is structurally prevented from drifting — pinned versions, canary cards, an append-only evidence chain, and corrections made in the open.

CF-PS-2026-001 · v1.0 · October 4, 2026 · Study PILOT-1, pre-registered 2026-10-04 before data collection; engines pinned MOSES 2.18.0 / Edge Engine 3.1.0; remediation v2.18.1 deployed the same day. Measurements are published; activation thresholds are proprietary. Related reading: How AI card grading caught a damaged corner · How to grade card corners.
